Signal Light Gun
EXCEPTIONAL PERFORMANCE AND QUALITY
The Model 901 Signal Light Gun is the world’s first hand-held, cordless signal light gun. It combines lightweight, composite construction with easy push-button lamp activation and color selection.
An integral sight provides fast, accurate aiming. It also contains a fiber optic display that quickly and safely shows users which color they have selected. Battery-powered operation and robust design ensure reliable, trouble-free operation and long life.

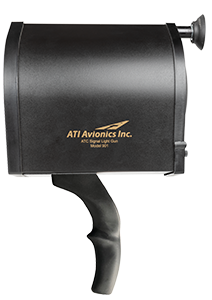

Signal Light Gun Model 901
VISIBILITY RANGE
up to 6.6 km (3.6 nm) under clear daytime conditions
LIGHT COLOURS
Red, green, and white (standard aviation signaling colors)
LIGHT INTENSITY
200,000 candelas at light beam center
WEIGHT
1.95 kg (4.3 lb.) including battery
1.35 kg (3.0 lb.) using the auxiliary power cable (battery removed)
LIGHT CONTROL
Intermittent or continuous operation activated by color-coded, back-lit push-buttons
POWER
13.2V, 1.8A, Ni-Cad rechargeable battery or 14V, dc-10A adapter, and external power supply
LAMP
15V, 150W

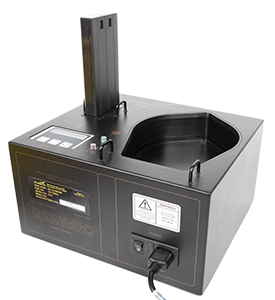

CHARGER MODEL 951C
POWER
90-130V ac, 180-260V ac, 50/60 Hz (auto-select)
SIZE
30 x 15 x 25 cm (11.5 x 6 x 10 in.) w/h/d
WEIGHT
7.25 kg (16 lb.)
CHARGE TIME
Approximately 1 hour
OPERATION
Main and auxiliary charger: automatic charge and charge maintenance modes
Auxiliary charger: user-selected microprocessor-controlled discharge, analyze and condition modes
STATUS INDICATION
Main charger: red/green LED
Auxiliary charger: multi-function LCD
